astercc支持的短信(SMS)供应商列表
短信服务器的坐席工作界面介绍
为系统或团队添加短信服务器（核心:短信供应商），astercc系统群发短信(注:坐席一次只能发一条信息)时，将使用自带的一个短信供应商(此处以”上海希奥信息科技有限公司“为例，简称:希奥)群发短信。

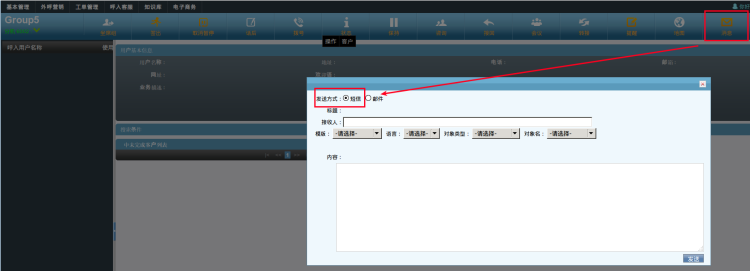

用于坐席页面登录→[消息]→[短信]发送模块。

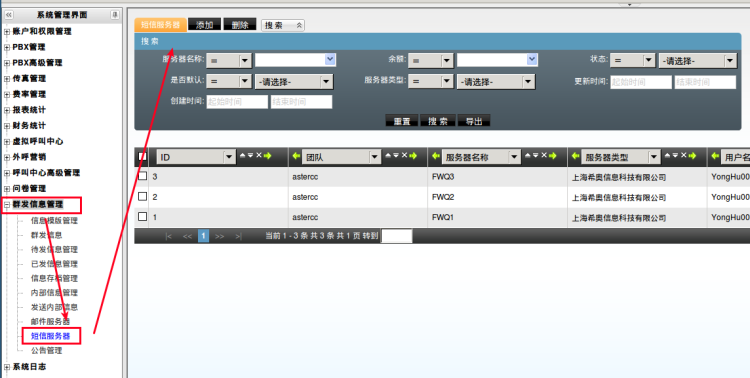

通过菜单列表[群发信息管理]→[短信服务器]进入如下界面
配置短信服务器

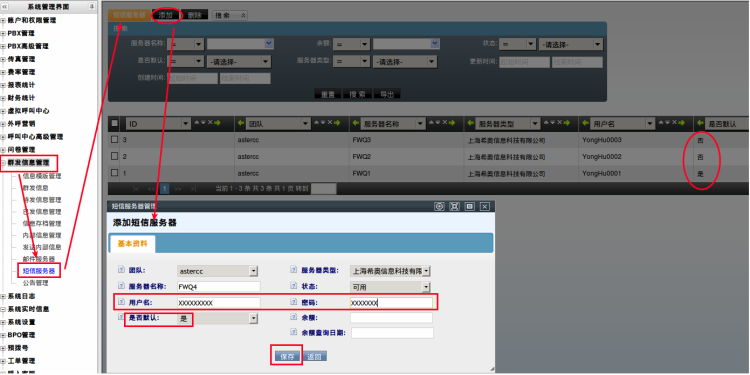

点击[添加]按钮,打开添加短信服务器界面

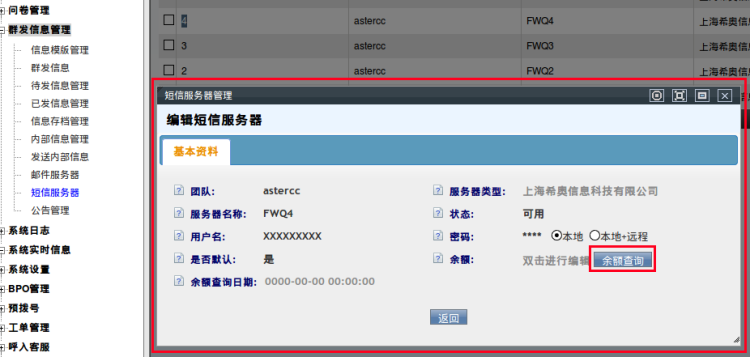

添加完成后的短信服务器编辑页面
短信服务器界面各字段含义如下:
团队：如果不选择团队，代表此短信服务器用于系统级别的短信发送；指定团队，对应的团队发短信可使用此服务器
服务器类型：即:短信供应商。只要你的用户名、密码正确，并且对应用户余额充足，所发短信均可送达目标。设置此类短信服务器需要填写用户名和密码，坐席系统外发短信时，会向短信供应商提交审核，审核通过后，即可发送短信。可以这样理解，有人用你的手机（手机运营商是希奥 而不是中国移动、联通、电信）然后发了一条短信
服务器名称：团队下的服务器名称，因为有可以有多个服务器，以免混淆，所以设置此项
用户名：即在希奥开户时的用户名
密码：对应的密码
状态：可用
是否默认：在一个团队中，可以用多家SMS供应商，但只能有一个服务器是默认的，也就是在不选定用哪家服务器发短信时所选择的
余额：点击右面的[余额查询]按钮，可以查询到团队在此短信供应商的余额，方便用户及时充值
短信供应商的四种配置方法
使用系统自带SMS供应商发送短信

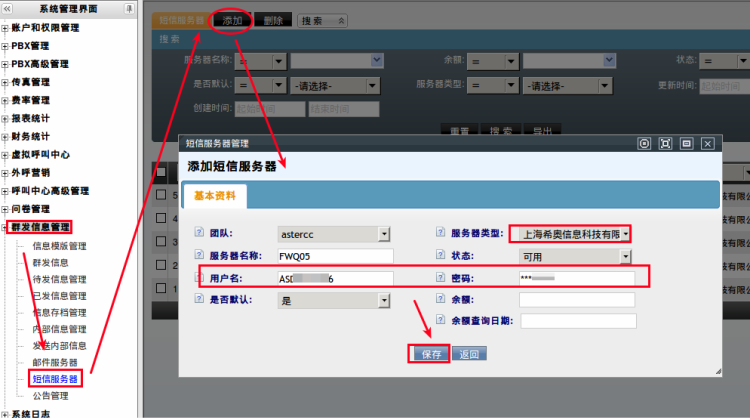

在上面“短信服务器的配置”一节中可知道，系统自带sms服务器供应商是：上海希奥信息科技有限公司。只需购买上海希奥的帐号密码，点击[群发信息管理]→[短信服务器]→[添加],设置好 “用户名”和“密码”，点击[保存]。
使用串口短信猫发送短信
详情请阅读：asterCC系统中配置使用串口短信猫
使用系统列表内SMS供应商发送短信
首先登录服务器，登录后查看短信供应商列表，我们会看到有： 1.驿家365短信供应商(eaka365) 2.亿美短信供应商 3.瑞特维短信供应商 4.点点客短信供应商 … …
vim /home/coder/astercc_dev/astcc_smsman.pl如果选择以上列表短信供应商的客户，只需将 [供应商、供应商提供的帐号(或序号)、密码]，填写到相应位置。
####驿家365短信供应商(eaka365)接口,需要修改{ my $serialpass = '******'; my $key = '*******';}
sub sms_eaka{
my $smsStuff = shift;
$query = "UPDATE ".$db_prefix."batchcontacts SET status = 'pending', `contacttime` = now() WHERE id = '$smsStuff->{'id'}';";
&executeQuery($query);
my $nsPrefix = 'ns'.(int(rand(8999))+1000);
my $softwareSerialNo = '3SDK-VFG-0130-KKRUR';
my $serialpass = '********';
my $key = '*********';
my $sendTime = '';
my $mobiles = $smsStuff->{'target'};
my $smsContent = $batchcontact_archive_list{$smsStuff->{'batchcontact_archive_id'}}{'content'}."【驿家365】";
my $addSerial = '';
my $srcCharset = 'UTF-8';
my $smsPriority = 5;
my $xmldata = '<?xml version="1.0" encoding="'.$srcCharset.'"?><SOAP-ENV:Envelope xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><'.$nsPrefix.':sendSMS xmlns:'.$nsPrefix.'="http://sdkhttp.eucp.b2m.cn/"><arg0 xsi:type="xsd:string">'.$softwareSerialNo.'</arg0><arg1 xsi:type="xsd:string">'.$key.'</arg1><arg2 xsi:type="xsd:string">'.$sendTime.'</arg2><arg4 xsi:type="xsd:string">'.$smsContent.'</arg4><arg5 xsi:type="xsd:string">'.$addSerial.'</arg5><arg6 xsi:type="xsd:string">'.$srcCharset.'</arg6><arg7 xsi:type="xsd:int">'.$smsPriority.'</arg7><arg3 xsi:type="xsd:string">'.$mobiles.'</arg3></'.$nsPrefix.':sendSMS></SOAP-ENV:Body></SOAP-ENV:Envelope>';
my $response = $ua->post('http://sdkhttp.eucp.b2m.cn/sdk/SDKService?wsdl',
'Host' => 'sdkhttp.eucp.b2m.cn',
'User-Agent' => 'NuSOAP/0.9.5 (1.123)',
'Content-Type' => 'text/xml; charset='.$srcCharset,
'SOAPAction' => '""',
'Content' => $xmldata
);
my $response_content = $response->content;
my $response_code = XMLin($response_content);
my $refcode = $response_code->{'S:Body'}->{'ns2:sendSMSResponse'}->{'return'};
&debug($refcode);
if($refcode eq "0"){
# success
$query = "UPDATE ".$db_prefix."batchcontacts SET status='success',`contacttime`=now() WHERE id='".$smsStuff->{'id'}."';";
}else{
# falied
$query = "UPDATE ".$db_prefix."batchcontacts SET status='error',`responsenote`='".$refcode."',`contacttime`=now() WHERE id='".$smsStuff->{'id'}."';";
}
&executeQuery($query);
return;
}
####亿美短信供应商接口，需要修改{my $serialpass = '******'; my $key = '******';}
sub sms_yimei {
my $smsStuff = shift;
$query = "UPDATE ".$db_prefix."batchcontacts SET status = 'pending', `contacttime` = now() WHERE id = '$smsStuff->{'id'}';";
&executeQuery($query);
my $nsPrefix = 'ns'.(int(rand(8999))+1000);
my $softwareSerialNo = '6SDK-EMY-6688-KEWMK';
my $serialpass = '********';
my $key = '********';
my $sendTime = '';
my $mobiles = $smsStuff->{'target'};
my $smsContent = $batchcontact_archive_list{$smsStuff->{'batchcontact_archive_id'}}{'content'};
my $addSerial = '';
my $srcCharset = 'UTF-8';
my $smsPriority = 5;
my $xmldata = '<?xml version="1.0" encoding="'.$srcCharset.'"?><SOAP-ENV:Envelope xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" SOAP-ENV:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"><SOAP-ENV:Body><'.$nsPrefix.':sendSMS xmlns:'.$nsPrefix.'="http://sdkhttp.eucp.b2m.cn/"><arg0 xsi:type="xsd:string">'.$softwareSerialNo.'</arg0><arg1 xsi:type="xsd:string">'.$key.'</arg1><arg2 xsi:type="xsd:string">'.$sendTime.'</arg2><arg4 xsi:type="xsd:string">'.$smsContent.'</arg4><arg5 xsi:type="xsd:string">'.$addSerial.'</arg5><arg6 xsi:type="xsd:string">'.$srcCharset.'</arg6><arg7 xsi:type="xsd:int">'.$smsPriority.'</arg7><arg3 xsi:type="xsd:string">'.$mobiles.'</arg3></'.$nsPrefix.':sendSMS></SOAP-ENV:Body></SOAP-ENV:Envelope>';
my $response = $ua->post('http://sdk4report.eucp.b2m.cn:8080/sdk/SDKService?wsdl',
'Host' => 'sdkhttp.eucp.b2m.cn',
'User-Agent' => 'NuSOAP/0.9.5 (1.123)',
'Content-Type' => 'text/xml; charset='.$srcCharset,
'SOAPAction' => '""',
'Content' => $xmldata
);
my $response_content = $response->content;
my $response_code = XMLin($response_content);
my $refcode = $response_code->{'S:Body'}->{'ns2:sendSMSResponse'}->{'return'};
&debug($refcode);
if($refcode eq "0"){
# success
$query = "UPDATE ".$db_prefix."batchcontacts SET status='success',`contacttime`=now() WHERE id='".$smsStuff->{'id'}."';";
}else{
# falied
$query = "UPDATE ".$db_prefix."batchcontacts SET status='error',`responsenote`='".$refcode."',`contacttime`=now() WHERE id='".$smsStuff->{'id'}."';";
}
&executeQuery($query);
return;
}
####瑞特维短信供应商接口，需要修改{#my $serialNu = '******';#序列号 #my $serialpw = '****';#密码} <file> sub sms_dnhttp { my $smsStuff = shift; my $message = $batchcontact_archive_list{$smsStuff→{'batchcontact_archive_id'}}{'content'};#内容 #老版本 #my $serialNu = '****';#序列号 #my $serialpw = '******';#密码
#my $billcode1 = 'sms6007';#计费代码1
#my $billcode2 = '116';#计费代码2
#修正
my $serialNu = '********';#序列号
my $serialpw = '********';#密码
my $billcode1 = 'sms60';#计费代码1
my $billcode2 = '111';#计费代码2
my $numberCount = 1;#条数
#先获取审核信息id
my $audit_response = $ua->post('http://202.85.215.208/SmsService/Service/auditMessage',
{
serialNu => $serialNu,
serialpw => $serialpw,
smcontent => $message,
numberCount => $numberCount,
billcode => $billcode1,
}
);
my $auditId = $audit_response->content;#获取审核信息id
&debug($auditId);
if ($auditId > 0) {
#进行短信发送
my $send_response = $ua->post('http://202.85.215.208/SmsService/Service/sendSMS',
{
phonenumber => $smsStuff->{'target'},
smscontent => $message,
billcode => $billcode2,
seqno => $serialNu,
sendtime => "",
oldpw => $serialpw,
auditId => $auditId,
}
);
my $backmsg = $send_response->content;
&debug($backmsg);
if($backmsg eq "0"){
# success
$query = "UPDATE ".$db_prefix."batchcontacts SET status = 'success', contacttime = now() WHERE id = '$smsStuff->{'id'}' ";
}else{
# falied
$query = "UPDATE ".$db_prefix."batchcontacts SET status = 'error', responsenote = '$backmsg', contacttime = now() WHERE id = '$smsStuff->{'id'}' ";
}
}else{
# falied
$query = "UPDATE ".$db_prefix."batchcontacts SET status = 'error', responsenote = '$auditId', contacttime = now() WHERE id = '$smsStuff->{'id'}' ";
}
&executeQuery($query);
return;
}
</file>
####点点客短信供应商接口，需要修改{my $userName = '******';#用户名 my $idString = '****';#密码} <file> sub sms_whhttp { my $smsStuff = shift; my $msgContent = $batchcontact_archive_list{$smsStuff→{'batchcontact_archive_id'}}{'content'};#内容 my $userName = '****';#用户名 my $idType = 1;#明文 my $idString = '******';#密码
my $sendTime = '';#为空 立即发送
my $destNumber = $smsStuff->{'target'};#目标号码
#进行短信发送
my $send_response = $ua->post('http://newweb1.dodoca.com:8080/NOSmsPlatform/http/DodocaInterface/smsSendExt',
{
userName => $userName,
idType => $idType,
idString => $idString,
msgContent => $msgContent,
destNumber => $destNumber,
sendTime => $sendTime,
}
);
my $backmsg = $send_response->content;
my $xmlmsg = XMLin($backmsg);
my @resary = split("," , trim($xmlmsg->{'result'}));
my $backcode = $resary[0];
&debug($backcode);
if($backcode eq "1"){
# succ
$query = "UPDATE ".$db_prefix."batchcontacts SET status = 'success',responsenote = '$xmlmsg->{'taskId'}', contacttime = now() WHERE id = '$smsStuff->{'id'}' ";
}else{
# err
$query = "UPDATE ".$db_prefix."batchcontacts SET status = 'error', responsenote = '$xmlmsg->{'result'}', contacttime = now() WHERE id = '$smsStuff->{'id'}' ";
}
&executeQuery($query);
return;
} sub debug{
my $message = shift;
my $time=scalar localtime;
if ($debug > 0) {
open (HDW,">>$Bin/astcc_smsman.txt");
print HDW $time," ",$message,"\n";
close HDW;
if ($ARGV[0] eq '-d'){ # output to file
}else{
print $time," ",$message,"\n";
}
}
}
sub trim($) {
my $string = shift;
$string =~ s/^\s+//;
$string =~ s/\s+$//;
return $string;
}
sub become_daemon {
die "Can't fork" unless defined (my $child = fork); exit 0 if $child;#kill父进程 setsid(); open( STDIN, "</dev/null" ); open( STDOUT, ">/dev/null" ); open( STDERR, ">&STDOUT" );
$SIG{__WARN__} = sub {
&debug ("NOTE! " . join(" ", @_));
};
$SIG{__DIE__} = sub {
&debug ("FATAL! " . join(" ", @_));
unlink $pidFile;
exit;
};
$SIG{HUP} = $SIG{INT} = $SIG{TERM} = sub {
# Any sort of death trigger results in death of all
my $sig = shift;
$SIG{$sig} = 'IGNORE';
die "killed by $sig\n";
exit;
};
umask(0);
#$ENV{PATH} = '/bin:/sbin:/usr/bin:/usr/sbin';
return $$;
} sub connect_mysql {
my %info = @_;
my $dbh = DBI->connect("DBI:mysql:database=$info{'dbname'};host=$info{'dbhost'};port=$info{'dbport'}",$info{'dbuser'},$info{'dbpasswd'});
return($dbh);
}
sub executeQuery {
my $query = shift;
return if ($query eq '');
my $queryType = shift;
if (!$dbh->ping) {
&debug("Reconnect database");
$dbh = &connect_mysql(%dbInfo);
}
if ($debug > 10 && $internal_debug >0) {
&debug("$query");
}
$dbh->do("SET NAMES 'utf8'");
if ($queryType eq '') {
my $affect = $dbh->do($query) or &debug($dbh->errstr."($query)");
if ($affect eq '0E0'){
return 0;
}else{
return $affect;
}
}elsif ($queryType eq 'rows'){
my $rows = $dbh->prepare($query);
$rows->execute() or &debug($dbh->errstr);
return $rows;
}elsif ($queryType eq 'insert'){
$dbh->do($query) or &debug($dbh->errstr);
return $dbh->{q{mysql_insertid}};
}
}
</file>
使用第三方短信平台发送短信
详情请阅读：asterCC使用第三方短信平台发送短信
